| Quantity: | |
|---|---|
M6~M12
LUOSI
black oxide, White zinc, Yellow zinc, Hot Dip Galvanizing, Plain, dacromet, Blue white zinc
| Unit: mm | |||||

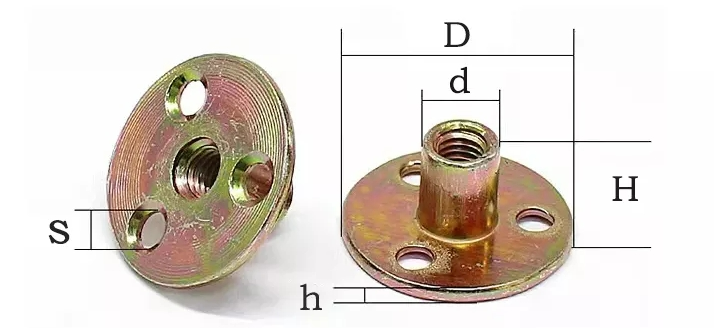

| size | Disc diameter:D | Cylinder diameter:d | Hole diameter:s | total height:H | Disc thickness：h |
| M6 | 25 | 7.6 | 3.8 | 9.2 | 1.2 |
| M6 | 27 | 12 | 3.8 | 17 | 2.5 |
| M8 | 28 | 9.3 | 3.4 | 11.2 | 1.2 |
| M8 | 22 | 9.3 | 3.4 | 9.9 | 1.3 |
| M8 | 22 | 9.5 | 3.5 | 11 | 2 |
| M8 | 37 | 9.5 | 4.5 | 8 | 1.2 |
| M8 | 37 | 12 | 4.5 | 17 | 2.5 |
| M10 | 25 | 12 | 4 | 10 | 1.8 |
| M10 | 37 | 12 | 4 | 17 | 2.5 |
| M12 | 40 | 16 | / | 24 | 3.5 |
| The above data is a single batch of manual measurement, there are certain errors, please refer to the actual product! | |||||
| You can also send an inquiry, confirm the drawing, and then place an order. | |||||
| Finish | Plain, black oxide , Zinc Electroplating,Hot Dip Galvanizing,Copper plating,Nickel plating,Zinc impregnation,ETC. |
| Material | Carbon steel、Stainless steel |
| Standard | GB, DIN, ISO, ANSI/ASTM, BS, JIS,ETC. |
| Non-standards | OEM is available, according to drawing or samples. |
| Samples | Samples are free. |
| Package | Wooden boxes, pallet, cartons, plastic bags, nylon bags. |
